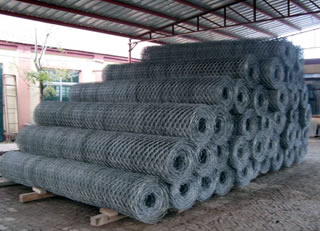

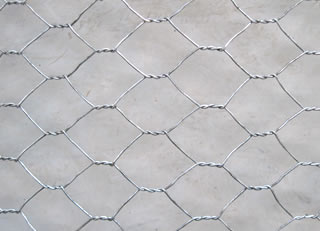

Galvanized Heavy Hexagonal Mesh

Heavy hexagonal mesh, also called big type hexagonal mesh. Enjoys wide applications. Heavy type hexagonal wire mesh can be made into gabion boxes used in control and guide of water or flood, flood bank or guiding bank, proventing of rock breaking, water and soil protection, bridge protection, strengthening structure of soil, seaport engineering, isolation walls, protection of road, etc

Galvanized Hexagonal Wire Mesh Heavy Type:Made with high quality low-carbon steel wire to weave, steel wire tensile strength is 38kg/M2. The wire diameter may reach 2.0mm-4.0mm. The steel wire is usually galvanized. And the galvanizing layer thickness can be made according to the customer request. Max. galvanizing quantity can be 300g/M2.

Galvanized Hexagonal Wire Mesh Heavy Type: PVC coated hexagonal Mesh is made of pvc coated wire that offers longer service life and better anticorrosion property.


Mesh Opening
(MM)
Iron Wire Diameter
(MM)
(PVC Wire)/ Inside diameter/Outer
diameter(MM)
Roll Width
(M)
60X80 2.0-2.8 2.0/3.0-2.5/3.5 4.3
80X100 2.0-3.2 2.0/3.0-2.8/3.8 4.3
80X120 2.0-3.2 2.0/3.0-2.8/3.8 4.3
100X120 2.0-3.4 2.0/3.0-2.8/3.8 4.3
100X150 2.0-3.4 2.0/3.0-2.8/3.8 4.3
120X150 2.0-4.0 2.0/3.0-3.0/4.0 4.3
